W Series
W Series Self-Service Kiosk

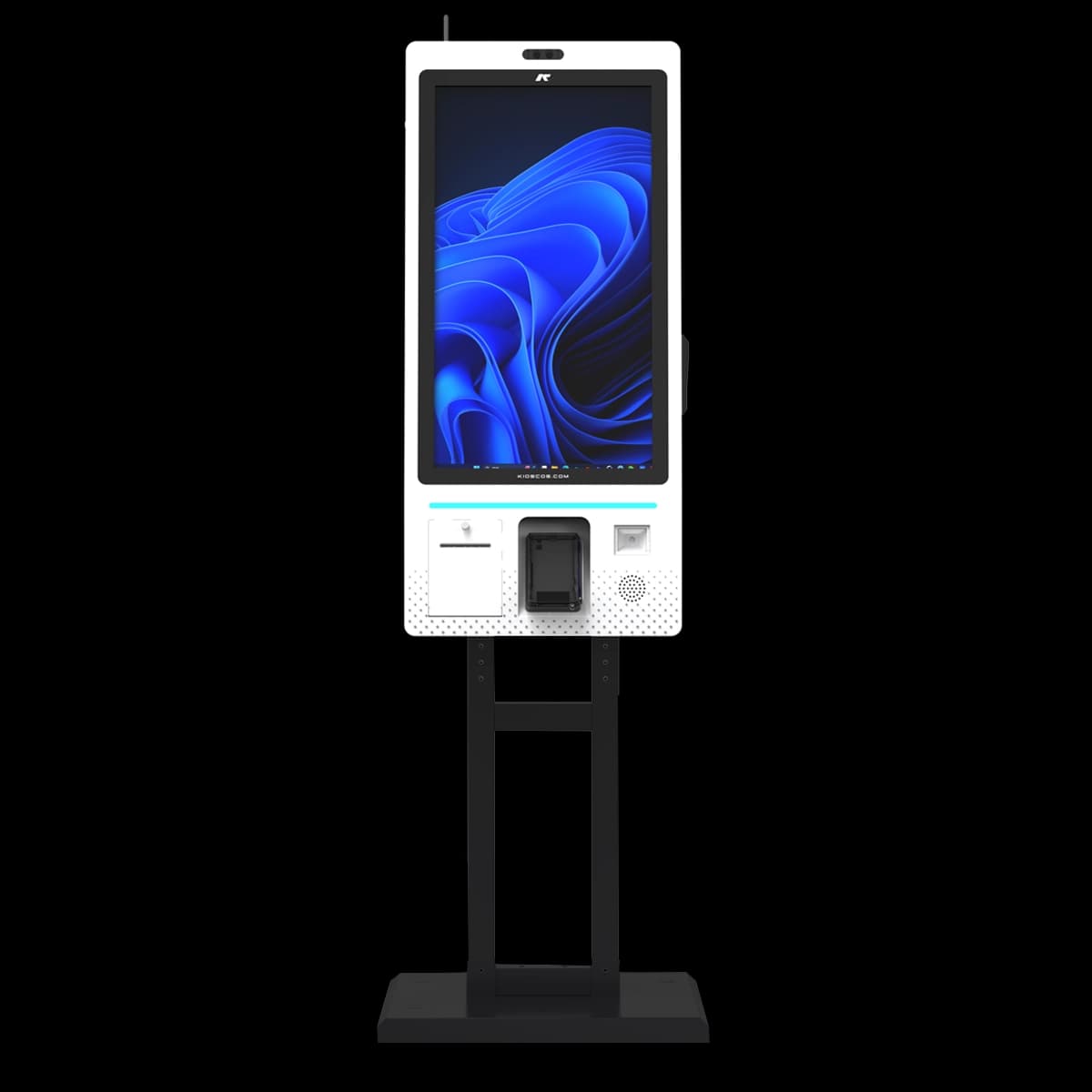

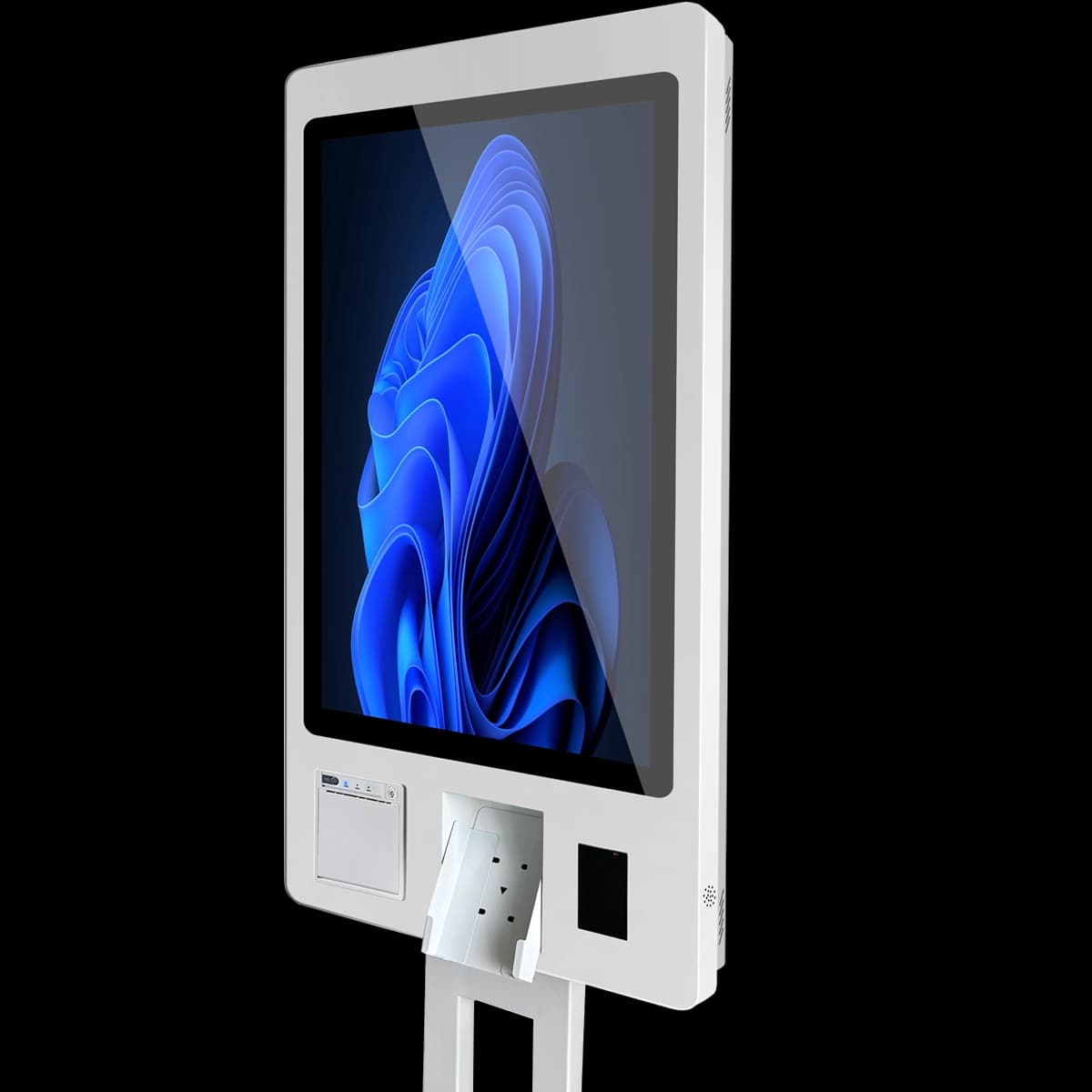

W Series is a slim, space-saving self-service kiosk designed for wall-first indoor installation. An optional floor stand can support one unit or two units back-to-back when a project needs a slim floor-standing layout. Configurable QR, printing, NFC and camera modules remain available.
- Wall / Floor
- 21.5–32 inch
- Slim Design
- Wall / Floor
- 21.5–32 inch
- Slim Design
Product Specifications
W Series Specifications & Configuration Options
Review the available structure, peripheral, payment and integration options for this kiosk platform.
Product Structure
- Cabinet Design
Slim-profile enclosure for wall or floor deployment
- Construction
Steel enclosure
Display & Installation
- Display
21.5 / 23.8 / 27 / 32 inch projected capacitive touchscreen
- Mounting
Wall-mounted / Floor-standing with optional stand
- Stand Configuration
Optional floor stand can support two W Series units in a back-to-back configuration
- Environment
Indoor
Payment & Integration
- QR Payment
Available on request
- NFC Payment
Available on request
- Cash Handling
Custom configuration available
Software & Integration
- Software Platform
Configurable
- Operating System
Windows 10 / 11, Android 13 / 14, Linux / Raspberry Pi OS — available based on project requirements
- API Integration
Available on request
- Remote Management
Available on request
- Multi-language UI
Configurable
Dimensions & Environment
- Dimensions
Project-specific
- Operating Environment
Indoor commercial spaces
- Customization
Available on request
Configurable Peripheral Modules
Configurable Peripheral Modules
Peripheral modules are selected according to project requirements. The specifications shown below represent typical configuration examples and may vary by component model, currency, media type, interface and deployment environment.
Alternative compatible modules can be integrated to meet project-specific functional, capacity and regional requirements.
QR Scanner
Embedded QR and barcode scanning modules can be configured for printed codes, on-screen codes and workflow-specific symbologies.
View Typical SpecificationsHide Typical Specifications
QR Scanner
Embedded QR and barcode scanning modules can be configured for printed codes, on-screen codes and workflow-specific symbologies.
View Typical SpecificationsHide Typical SpecificationsTypical Configuration Example
Example specifications are provided for reference and are not fixed platform limitations.
- Image Sensor
- 640 × 480 CMOS
- 2D Codes
- QR Code / Micro QR
- 1D Codes
- Code 128 / EAN / UPC / Code 39 / Code 93 / ITF and other common formats
- Screen Barcode Reading
- Supported
- Typical QR Reading Depth
- 20–75 mm for 15 mil QR Code
- Interfaces
- USB / TTL-232 / RS-232 option
- Field of View
- 64° horizontal / 49.8° vertical
- Operating Temperature
- -20°C to 60°C
Supported symbologies, reading distance, interface and installation dimensions vary by the selected scanning module.
Receipt / Document Printer
Embedded thermal receipt and document printing modules can be configured for paper capacity, cutter requirements and workflow-specific output.
View Typical SpecificationsHide Typical Specifications
Receipt / Document Printer
Embedded thermal receipt and document printing modules can be configured for paper capacity, cutter requirements and workflow-specific output.
View Typical SpecificationsHide Typical SpecificationsTypical Configuration Example
Example specifications are provided for reference and are not fixed platform limitations.
- Print Technology
- 3-inch direct thermal printing
- Print Speed
- Up to 250 mm/s
- Paper Roll Options
- Up to Ø80 mm or Ø150 mm
- Interfaces
- USB / RS232; Ethernet on selected configurations
- Cutting
- Automatic cutter
- Paper Handling Options
- Receipt detection with LED / Anti-jam and anti-pull outlet / Receipt presentation and retraction
Available paper handling, interface and roll-capacity options depend on the selected printer configuration.
Camera
High-resolution camera modules can support facial image capture, remote assistance and workflow-specific imaging. Recognition algorithms can be integrated separately when required.
View Typical SpecificationsHide Typical Specifications
Camera
High-resolution camera modules can support facial image capture, remote assistance and workflow-specific imaging. Recognition algorithms can be integrated separately when required.
View Typical SpecificationsHide Typical SpecificationsTypical Configuration Example
Example specifications are provided for reference and are not fixed platform limitations.
- Active Array
- 3840 × 2160
- Interface
- USB 2.0
- Power
- 5 V USB bus power
- Module Size
- 38 × 38 × 20 mm
- Focus Distance
- 60 cm
- Operating Systems
- Windows / Android
- Operating Temperature
- -20°C to 70°C
Camera resolution, lens, viewing angle, image-processing SDK and recognition capability depend on the selected module and software integration.
Contactless RFID / NFC Reader
Model: R122U
13.56 MHz contactless RFID / NFC reader for card taps, mobile NFC workflows and MIFARE-based identity or access use cases.
View Typical SpecificationsHide Typical Specifications
Contactless RFID / NFC Reader
Model: R122U
13.56 MHz contactless RFID / NFC reader for card taps, mobile NFC workflows and MIFARE-based identity or access use cases.
View Typical SpecificationsHide Typical SpecificationsConfirmed Module Specifications
Example specifications are provided for reference and are not fixed platform limitations.
- Model
- R122U
- Operating Frequency
- 13.56 MHz
- Supported Standards
- ISO 14443 / ISO 18092 NFC / MIFARE
- Data Rate
- Up to 424 Kbps
- Typical Read Distance
- Up to approximately 50 mm
- Interface
- USB CCID
- Host Protocols
- PC/SC / CT-API
- Indicators
- LED + buzzer
Supported card types, read distance and host-driver behavior depend on the R122U configuration and application software.
Typical Applications
Typical Applications for the W Series
Restaurant Self-Ordering
Space-efficient self-service ordering terminals for restaurant front-of-house environments.
Explore Application →Retail Self-Service
Slim self-service terminals for product inquiry, customer interaction and other retail service workflows.
Product Inquiry
Interested in the W Series?
Share your indoor space constraints and workflow — we will propose a slim W Series configuration.
