S Series

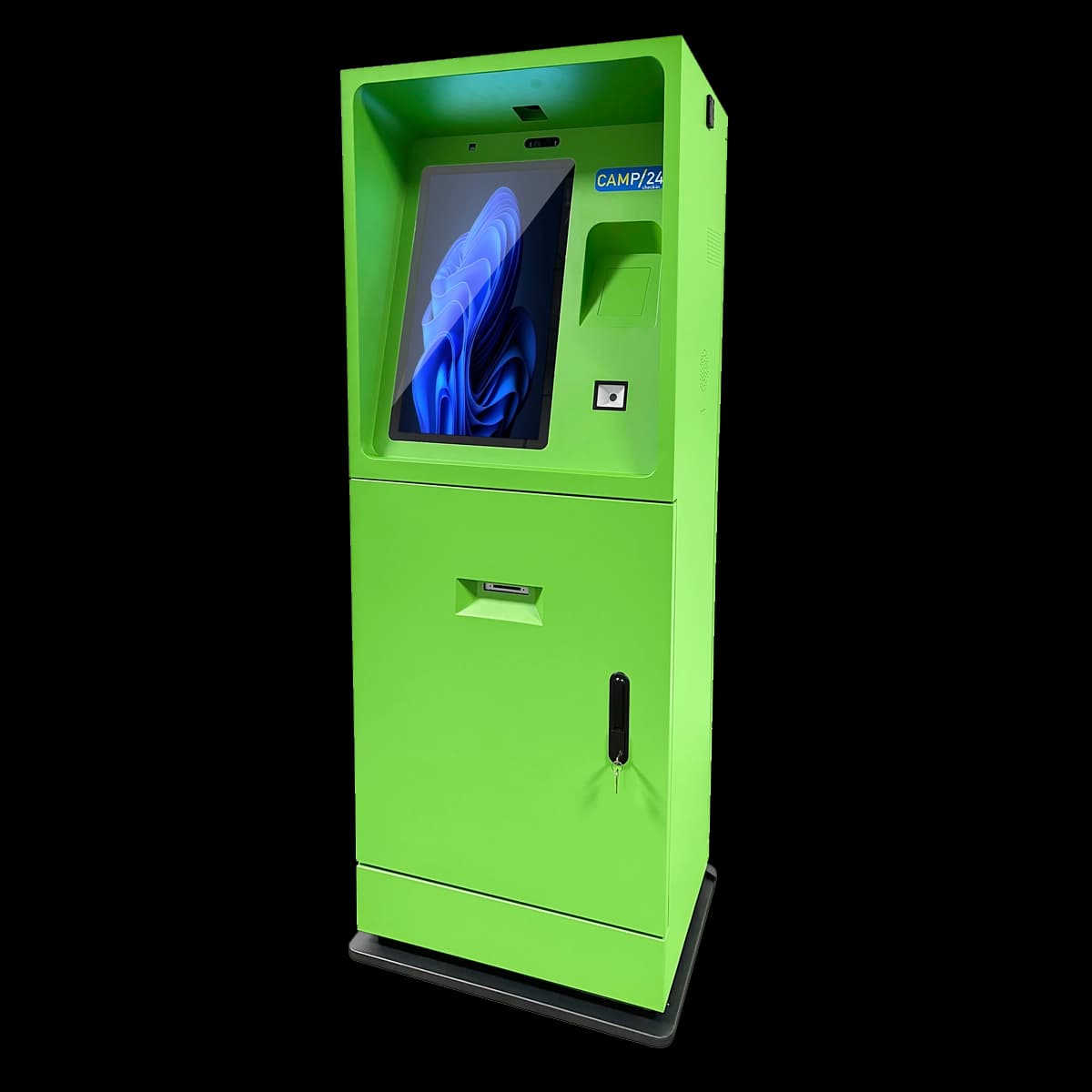

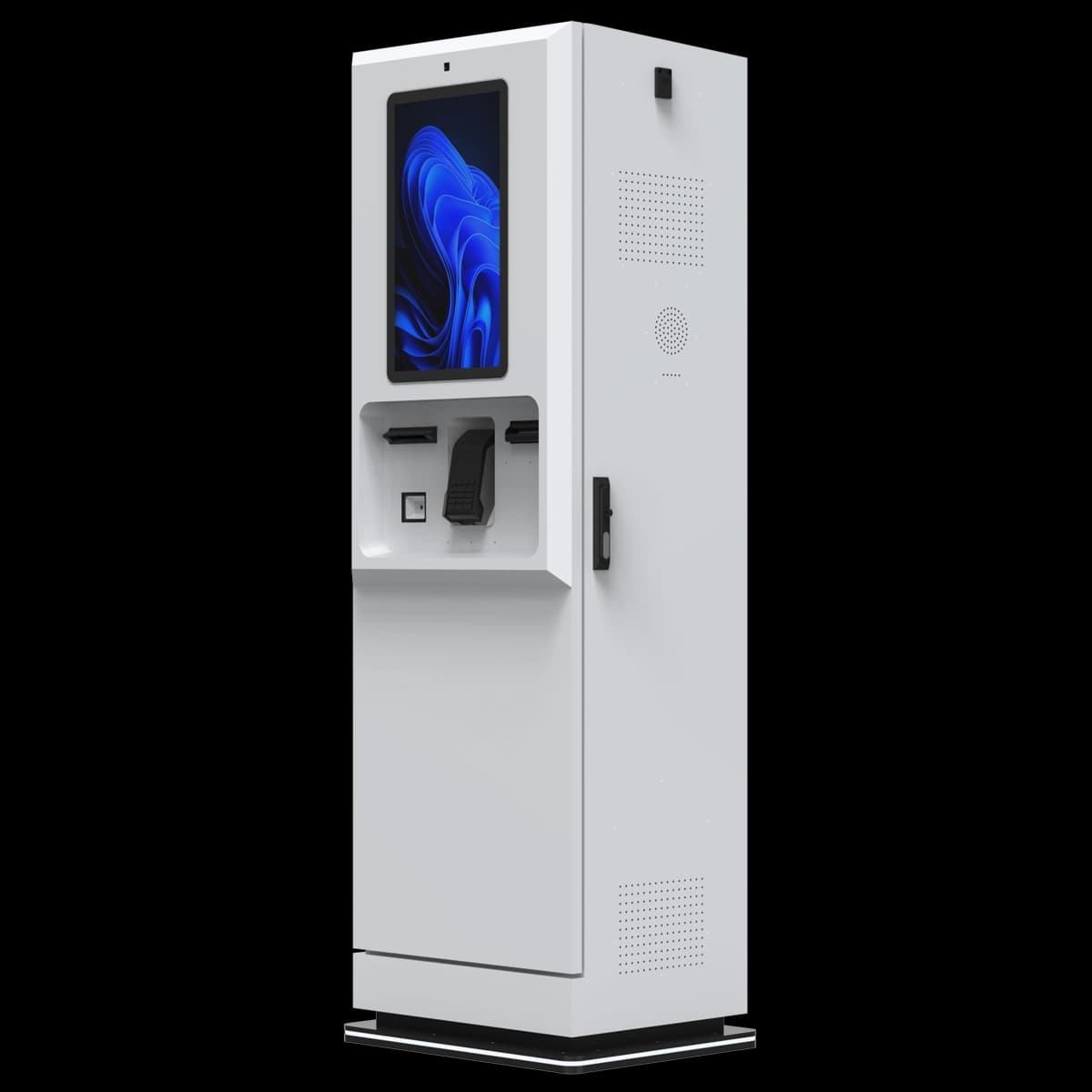

S Series Self-Service Kiosk
S Series is an outdoor kiosk and outdoor self-service kiosk platform with an IP65 enclosure, a 1500 cd/m² sunlight-readable display and corrosion-resistant construction, supporting configurable payment, cash, printing and card-reading modules.
- Outdoor
- IP65
- 1500 cd/m²
- Outdoor
- IP65
- 1500 cd/m²
Product Specifications
S Series Specifications & Configuration Options
Review the available structure, peripheral, payment and integration options for this kiosk platform.
Product Structure
- Enclosure Rating
IP65
- Impact Resistance
IK07–IK10 — configurable based on project requirements
- Construction
Corrosion-resistant enclosure with stainless steel or galvanized steel options
Display & Installation
- Display
23.8 / 27 / 32 inch projected capacitive touchscreen, 1500 cd/m² brightness
- Mounting
Floor-standing
- Environment
Outdoor
Payment & Cash
- Cash Handling
Banknote acceptance / change and coin acceptance / change — configurable
- Card Reading
Configurable
- QR Payment
Available on request
Software & Integration
- Software Platform
Configurable
- Operating System
Windows 10 / 11, Android 13 / 14, Linux / Raspberry Pi OS — available based on project requirements
- API Integration
Available on request
- Remote Management
Available on request
- Multi-language UI
Configurable
Dimensions & Environment
- Dimensions
Project-specific
- Operating Environment
Outdoor commercial sites
- Customization
Available on request
Configurable Peripheral Modules
Configurable Peripheral Modules
Peripheral modules are selected according to project requirements. The specifications shown below represent typical configuration examples and may vary by component model, currency, media type, interface and deployment environment.
Alternative compatible modules can be integrated to meet project-specific functional, capacity and regional requirements.
Receipt / Document Printer
Embedded thermal receipt and document printing modules can be configured for paper capacity, cutter requirements and workflow-specific output.
View Typical SpecificationsHide Typical Specifications
Receipt / Document Printer
Embedded thermal receipt and document printing modules can be configured for paper capacity, cutter requirements and workflow-specific output.
View Typical SpecificationsHide Typical SpecificationsTypical Configuration Example
Example specifications are provided for reference and are not fixed platform limitations.
- Print Technology
- 3-inch direct thermal printing
- Print Speed
- Up to 250 mm/s
- Paper Roll Options
- Up to Ø80 mm or Ø150 mm
- Interfaces
- USB / RS232; Ethernet on selected configurations
- Cutting
- Automatic cutter
- Paper Handling Options
- Receipt detection with LED / Anti-jam and anti-pull outlet / Receipt presentation and retraction
Available paper handling, interface and roll-capacity options depend on the selected printer configuration.
QR Scanner
Embedded QR and barcode scanning modules can be configured for printed codes, on-screen codes and workflow-specific symbologies.
View Typical SpecificationsHide Typical Specifications
QR Scanner
Embedded QR and barcode scanning modules can be configured for printed codes, on-screen codes and workflow-specific symbologies.
View Typical SpecificationsHide Typical SpecificationsTypical Configuration Example
Example specifications are provided for reference and are not fixed platform limitations.
- Image Sensor
- 640 × 480 CMOS
- 2D Codes
- QR Code / Micro QR
- 1D Codes
- Code 128 / EAN / UPC / Code 39 / Code 93 / ITF and other common formats
- Screen Barcode Reading
- Supported
- Typical QR Reading Depth
- 20–75 mm for 15 mil QR Code
- Interfaces
- USB / TTL-232 / RS-232 option
- Field of View
- 64° horizontal / 49.8° vertical
- Operating Temperature
- -20°C to 60°C
Supported symbologies, reading distance, interface and installation dimensions vary by the selected scanning module.
Contactless RFID / NFC Reader
Model: R122U
13.56 MHz contactless RFID / NFC reader for card taps, mobile NFC workflows and MIFARE-based identity or access use cases.
View Typical SpecificationsHide Typical Specifications
Contactless RFID / NFC Reader
Model: R122U
13.56 MHz contactless RFID / NFC reader for card taps, mobile NFC workflows and MIFARE-based identity or access use cases.
View Typical SpecificationsHide Typical SpecificationsConfirmed Module Specifications
Example specifications are provided for reference and are not fixed platform limitations.
- Model
- R122U
- Operating Frequency
- 13.56 MHz
- Supported Standards
- ISO 14443 / ISO 18092 NFC / MIFARE
- Data Rate
- Up to 424 Kbps
- Typical Read Distance
- Up to approximately 50 mm
- Interface
- USB CCID
- Host Protocols
- PC/SC / CT-API
- Indicators
- LED + buzzer
Supported card types, read distance and host-driver behavior depend on the R122U configuration and application software.
Contact IC Card Reader
Contact IC card reading and writing modules can be configured for chip-based identity, banking and access-control workflows.
View Typical SpecificationsHide Typical Specifications
Contact IC Card Reader
Contact IC card reading and writing modules can be configured for chip-based identity, banking and access-control workflows.
View Typical SpecificationsHide Typical SpecificationsTypical Configuration Example
Example specifications are provided for reference and are not fixed platform limitations.
- Configuration
- Selected according to project requirements
- Interface
- Depends on the selected component model
- Capacity
- Configurable by component model
- Installation
- Integrated according to the kiosk internal layout
- Compatibility
- Subject to project, regional and software requirements
Exact module specifications vary by the selected component and project requirements.
Camera
High-resolution camera modules can support facial image capture, remote assistance and workflow-specific imaging. Recognition algorithms can be integrated separately when required.
View Typical SpecificationsHide Typical Specifications
Camera
High-resolution camera modules can support facial image capture, remote assistance and workflow-specific imaging. Recognition algorithms can be integrated separately when required.
View Typical SpecificationsHide Typical SpecificationsTypical Configuration Example
Example specifications are provided for reference and are not fixed platform limitations.
- Active Array
- 3840 × 2160
- Interface
- USB 2.0
- Power
- 5 V USB bus power
- Module Size
- 38 × 38 × 20 mm
- Focus Distance
- 60 cm
- Operating Systems
- Windows / Android
- Operating Temperature
- -20°C to 70°C
Camera resolution, lens, viewing angle, image-processing SDK and recognition capability depend on the selected module and software integration.
Banknote Acceptance and Change
Outdoor-rated banknote acceptance and change modules can be configured for unattended payment workflows in exposed deployment environments.
View Typical SpecificationsHide Typical Specifications
Banknote Acceptance and Change
Outdoor-rated banknote acceptance and change modules can be configured for unattended payment workflows in exposed deployment environments.
View Typical SpecificationsHide Typical SpecificationsTypical Configuration Example
Example specifications are provided for reference and are not fixed platform limitations.
- Configuration
- Selected according to project requirements
- Interface
- Depends on the selected component model
- Capacity
- Configurable by component model
- Installation
- Integrated according to the kiosk internal layout
- Compatibility
- Subject to project, regional and software requirements
Exact module specifications vary by the selected component and project requirements.
Coin Acceptance and Change
Outdoor-rated coin acceptance and change modules can be integrated for unattended coin payment and dispensing in exposed environments.
View Typical SpecificationsHide Typical Specifications
Coin Acceptance and Change
Outdoor-rated coin acceptance and change modules can be integrated for unattended coin payment and dispensing in exposed environments.
View Typical SpecificationsHide Typical SpecificationsTypical Configuration Example
Example specifications are provided for reference and are not fixed platform limitations.
- Configuration
- Selected according to project requirements
- Interface
- Depends on the selected component model
- Capacity
- Configurable by component model
- Installation
- Integrated according to the kiosk internal layout
- Compatibility
- Subject to project, regional and software requirements
Exact module specifications vary by the selected component and project requirements.
Typical Applications
Typical Applications for the S Series
Outdoor Parking Payment
Unattended payment terminals for open-air parking facilities and exposed pay-on-foot locations.
Explore Application →Car Wash Payment
Unattended outdoor payment terminals for wash bays, with weather-resistant enclosure and wash-controller integration.
Explore Application →Scrap Metal & Outdoor Recycling
Weather-resistant self-service terminals for scrap metal weighing, payment and outdoor recycling environments.
Gaming & Entertainment
Weather-resistant outdoor terminals for cash-enabled gaming, player funding and other exposed entertainment locations.
Explore Application →
Product Inquiry
Interested in the S Series?
Describe your outdoor site conditions and payment requirements — we will recommend an S Series configuration.
