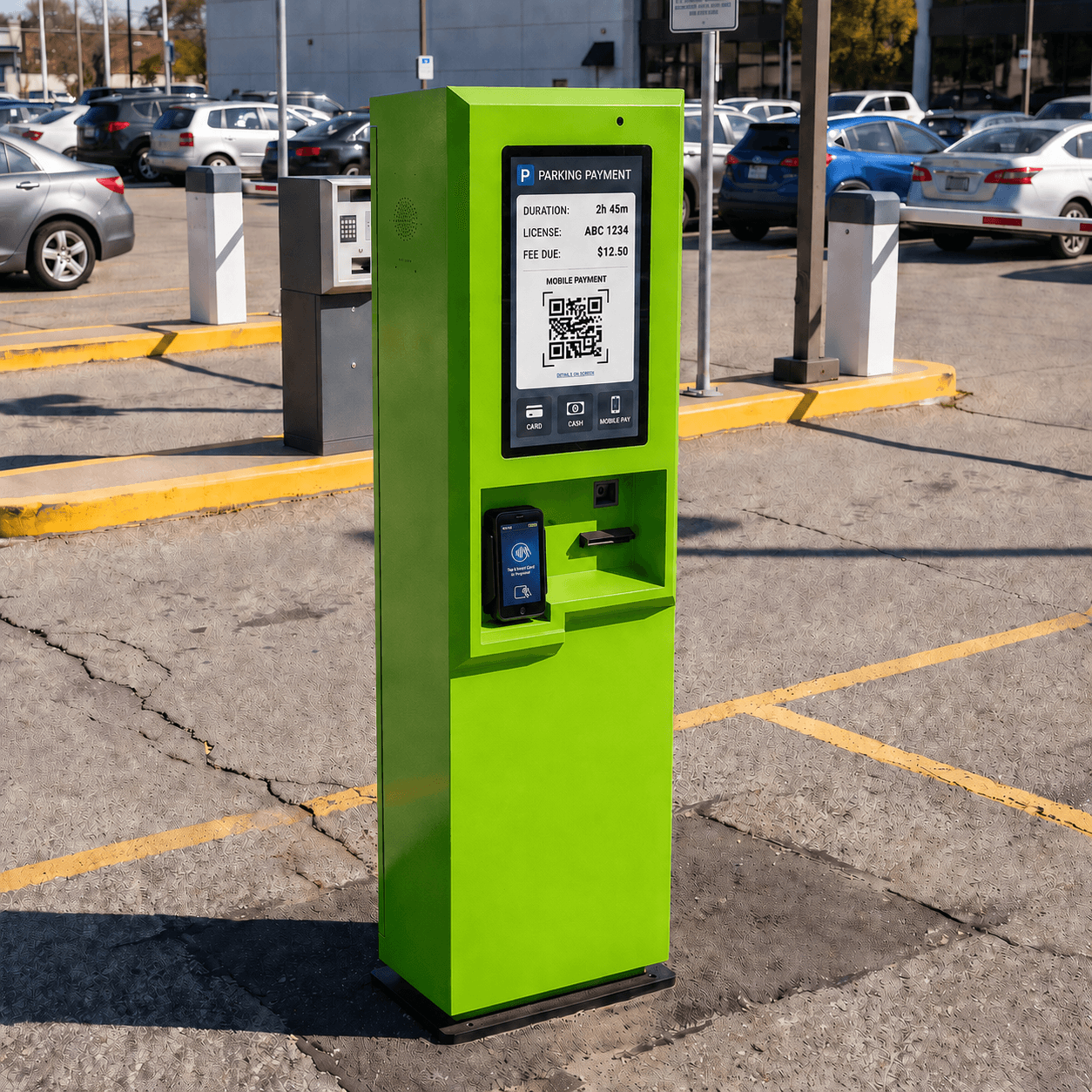

S Series
Outdoor Parking Payment Kiosk
Designed for outdoor and semi-outdoor parking sites where rain, dust, direct sunlight, temperature changes and 24/7 reliability are critical.
Parking Application
Parking Application
Parking Payment Kiosk Deployment
CRTLY provides indoor and outdoor parking payment kiosk hardware with configurable payment, ticket or QR validation and integration support for existing parking management, license plate recognition and barrier gate systems.
Target Environment
Indoor parking garages, outdoor parking lots, shopping mall pay stations, transportation hubs and pay-on-foot zones.
Business Context
Parking operators need reliable self-service payment hardware that fits the installation environment, supports local payment and validation methods, and can connect with their existing parking software and exit control equipment.
- Parking Payment
- Ticket / QR Validation
- Indoor & Outdoor
- Integration-ready
Industry Challenges
Operational Challenges in Parking Payment and Exit Flow
Parking operators need to balance payment throughput, validation accuracy, unattended service and reliable access control.
Peak Payment and Exit Congestion
High vehicle volumes can create queues when drivers need to pay, validate tickets or complete exit authorization at the same time.
Dependence on Staffed Payment Booths
Manual cashier operations increase labor costs, restrict service hours and slow down vehicle throughput.
Multiple Validation Methods
Parking sites may need to validate paper tickets, QR codes, discount vouchers, memberships or license plate records.
Outdoor and Semi-outdoor Reliability
Terminals near entrances, exits and open-air parking areas require stable operation under changing weather and temperature conditions.
Recommended Hardware
Hardware Options for Indoor and Outdoor Parking Sites
Select the kiosk platform according to the installation environment, payment workflow and operating conditions of the parking site.

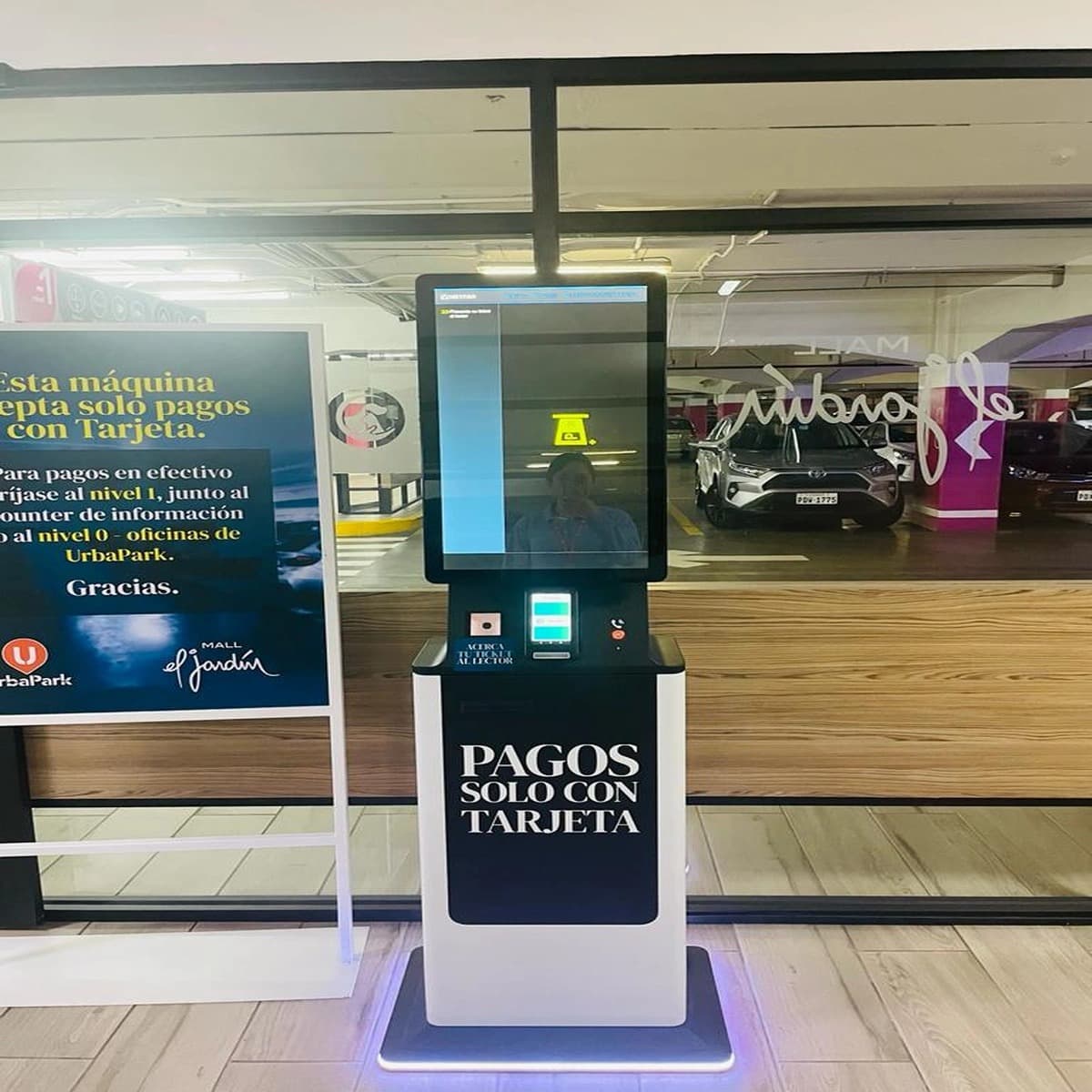

D Series
Indoor Parking Kiosk
Designed for indoor parking garages where limited space and peak-hour payment queues can delay vehicle exit. Fast ticket or QR validation and reliable self-service payment help reduce bottlenecks and improve throughput.
CORE FUNCTIONS
Core Functions of a Parking Payment Kiosk
Core hardware functions for ticket and code scanning, self-service payment and parking system connectivity.
1D / 2D Barcode & QR Scanning
The kiosk can be configured with a 1D/2D barcode scanner to read parking ticket barcodes, QR codes, discount vouchers and membership codes for the parking workflow.
Configurable Payment Modules
According to project requirements, the kiosk can be configured with an EMV card reader or POS terminal, banknote acceptor and coin acceptor. QR-based payment can also be supported according to the selected payment system and integration requirements.
What CRTLY Provides
Parking Payment Kiosk Hardware and Modules
CRTLY provides configurable display, payment, scanning, printing, enclosure and peripheral interface options according to the parking operator's workflow, installation environment and system requirements.
Hardware first. Integration-ready. Configured for your parking workflow.
Core Hardware
Configurable Display Sizes
CRTLY can provide different touchscreen sizes according to the kiosk structure, installation environment and customer project requirements.
Payment & Cash Modules
Configure EMV card readers or POS terminals, banknote acceptors and coin acceptors according to the required parking payment workflow.
1D / 2D Barcode & QR Scanning
Configure 1D/2D barcode scanners for parking tickets, QR codes, vouchers and membership codes.
Receipt Printer Integration
Receipt printing for payment records, transaction receipts and other parking workflow documents.
Indoor & Outdoor Enclosures
Cabinet, waterproofing, cooling, heating and screen visibility options for different environments.
Peripheral API & SDK Support
CRTLY can provide APIs, SDKs and interface documentation for configured kiosk peripherals, enabling the customer's software developers to integrate and control the required hardware modules.
Designed to Integrate With
- Parking management software
- LPR systems
- Barrier gate controllers
- Payment gateways
- Validation platforms
Project Inquiry
Planning a parking payment kiosk deployment?
Tell us about your parking site, payment methods, ticket or QR workflow, and existing parking software, LPR or barrier equipment. Our team will recommend a suitable kiosk configuration and integration approach.
Industry: Parking Payment Kiosk
- Recommended indoor or outdoor kiosk
- Required payment and validation modules
- Integration requirements for existing systems
Tell us your project requirements
