A Series

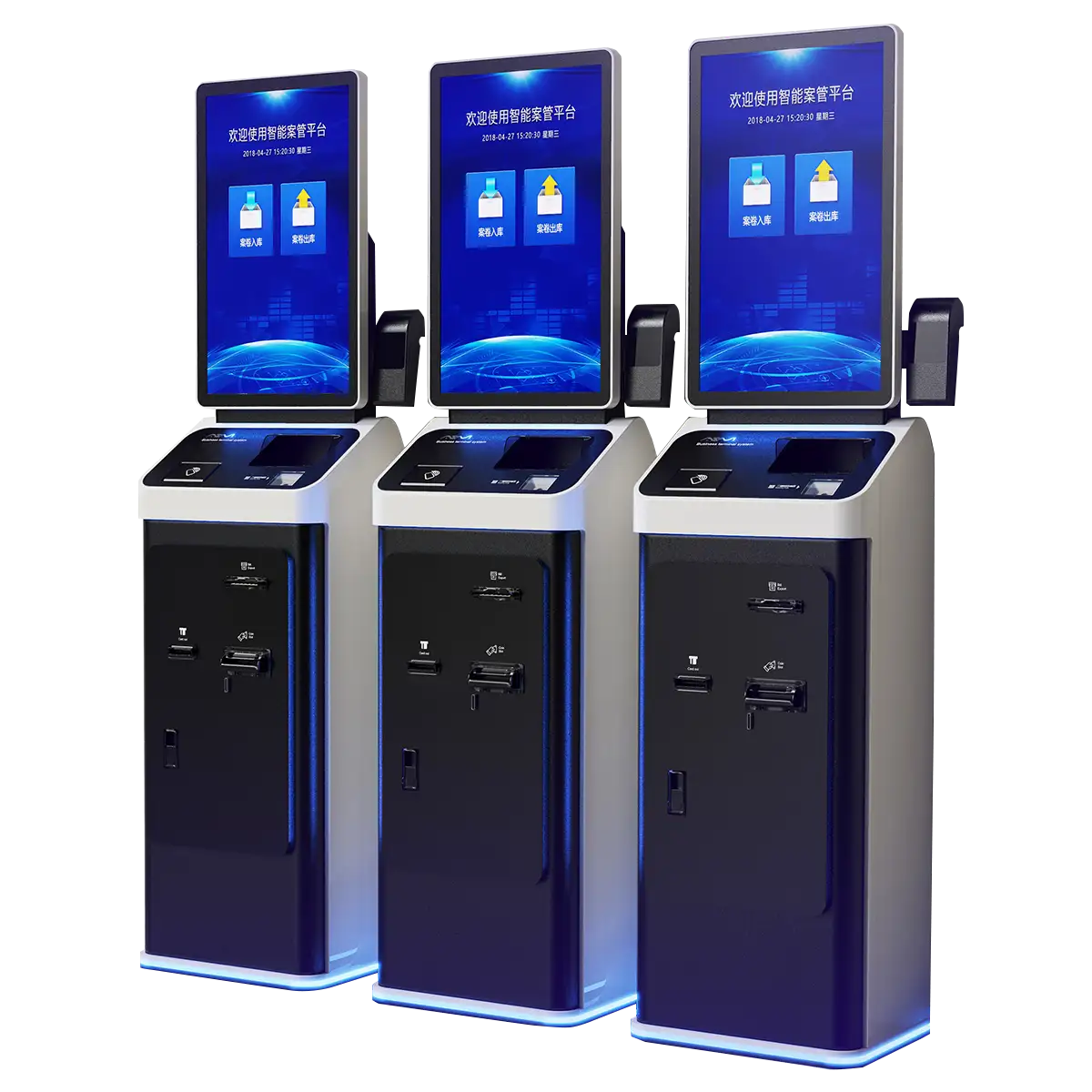

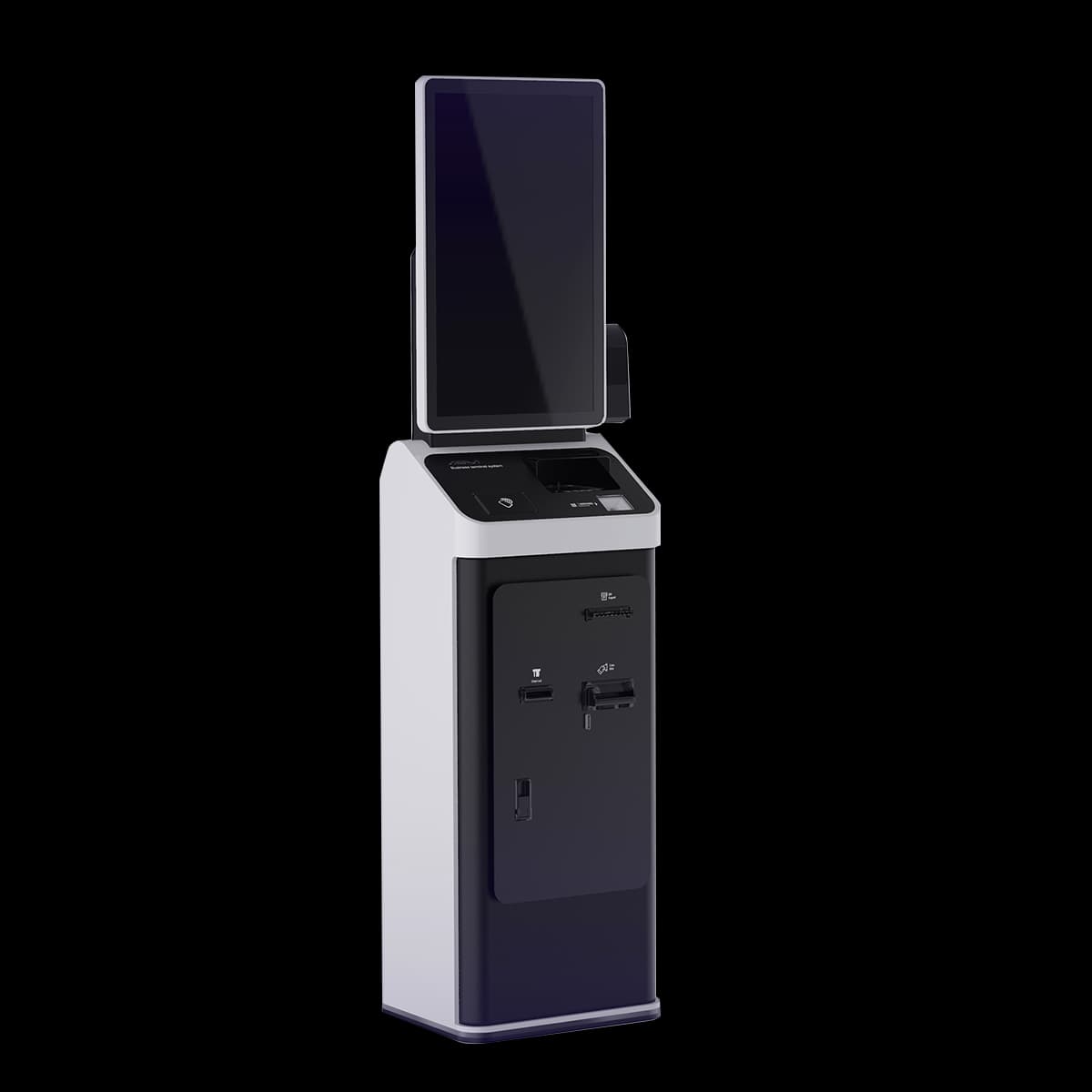

A Series Self-Service Kiosk
Configurable indoor self-service kiosk designed for cash handling, identity verification and card issuance. It can integrate a banknote acceptor or recycler, coin acceptor and dispenser, receipt printer, QR scanner, passport reader, facial recognition camera and card dispenser according to project requirements.
- Indoor Deployment
- Cash & Coin Handling
- Identity & Card Issuance
- Indoor Deployment
- Cash & Coin Handling
- Identity & Card Issuance
Product Specifications
Specifications & Configurations
Review the available structure, peripheral, payment and integration options for this kiosk platform.
Product Structure
- Status Indicator
Front-mounted status light
- Construction
Steel enclosure
Display & Installation
- Environment
Indoor
- Mounting
Freestanding, floor-standing
- Display
Projected capacitive multi-touchscreen
Payment & Cash
- Card Payment
Configurable
- QR Payment
Available on request
- Cash Payment
Available through selected banknote and coin configurations
Software & Integration
- Software Platform
Configurable
- API Integration
Available on request
- Remote Management
Available on request
- Multi-language UI
Configurable
Dimensions & Environment
- Dimensions
Project-specific
- Operating Environment
Indoor commercial spaces
- Customization
Available on request
Configurable Peripheral Modules
Configurable Peripheral Modules
Peripheral modules are selected according to project requirements. The specifications shown below represent typical configuration examples and may vary by component model, currency, media type, interface and deployment environment.
Alternative compatible modules can be integrated to meet project-specific functional, capacity and regional requirements.
Receipt Printing
High-speed embedded thermal printing with configurable paper-roll capacity, automatic cutting and optional receipt presentation, anti-pull protection or ticket retraction.
View Typical SpecificationsHide Typical Specifications
Receipt Printing
High-speed embedded thermal printing with configurable paper-roll capacity, automatic cutting and optional receipt presentation, anti-pull protection or ticket retraction.
View Typical SpecificationsHide Typical SpecificationsTypical Configuration Example
Example specifications are provided for reference and are not fixed platform limitations.
- Print Technology
- 3-inch direct thermal printing
- Print Speed
- Up to 250 mm/s
- Paper Roll Options
- Up to Ø80 mm or Ø150 mm
- Interfaces
- USB / RS232; Ethernet on selected configurations
- Cutting
- Automatic cutter
- Paper Handling Options
- Receipt detection with LED / Anti-jam and anti-pull outlet / Receipt presentation and retraction
Available paper handling, interface and roll-capacity options depend on the selected printer configuration.
Banknote Acceptance & Recycling
Banknote acceptance, validation, recycling and payout modules can be selected according to currency, denomination, capacity and cash-management requirements.
View Typical SpecificationsHide Typical Specifications
Banknote Acceptance & Recycling
Banknote acceptance, validation, recycling and payout modules can be selected according to currency, denomination, capacity and cash-management requirements.
View Typical SpecificationsHide Typical SpecificationsTypical Configuration Example
Example specifications are provided for reference and are not fixed platform limitations.
- Banknote Handling
- Acceptance, validation and mixed-denomination recycling
- Recycler Capacity
- Up to 80 mixed-denomination notes
- Cashbox Capacity
- Up to 1,000 notes
- Accepted Note Width
- 60–85 mm
- Recycled Note Width
- 60–82 mm
- Validation
- Full-spectral imaging
- Interfaces & Protocols
- USB / RS232 / SSP / ccTalk options
Currency support, denomination handling, recycler capacity, cashbox size and interfaces vary by the selected banknote module.
Coin Acceptance & Validation
Compact coin acceptance and validation modules can be configured for different currencies, installation spaces and operational requirements, with digital validation and fraud-reduction features.
View Typical SpecificationsHide Typical Specifications
Coin Acceptance & Validation
Compact coin acceptance and validation modules can be configured for different currencies, installation spaces and operational requirements, with digital validation and fraud-reduction features.
View Typical SpecificationsHide Typical SpecificationsTypical Configuration Example
Example specifications are provided for reference and are not fixed platform limitations.
- Installation
- Compact front-entry configuration
- Faceplate
- 115 mm
- Nominal Dimensions
- 63 × 95 × 115 mm
- Currency Configuration
- Market-specific and international currency options
- Debris Management
- Parallel Path debris-release design
Supported currencies, validation logic, dimensions and interfaces vary by the selected coin validator.
Coin Payout & Recycling
Mixed-coin payout and recycling modules can store, manage and dispense multiple denominations, with configurable coin capacity, payout speed and communication protocols.
View Typical SpecificationsHide Typical Specifications
Coin Payout & Recycling
Mixed-coin payout and recycling modules can store, manage and dispense multiple denominations, with configurable coin capacity, payout speed and communication protocols.
View Typical SpecificationsHide Typical SpecificationsTypical Configuration Example
Example specifications are provided for reference and are not fixed platform limitations.
- Coin Handling
- Mixed-coin storage, validation and payout
- Supported Denominations
- Up to 11 denominations
- Payout Speed
- Up to 12 coins/s, depending on coin configuration
- Coin Diameter
- 18–28.5 mm
- Coin Thickness
- 1.65–3.2 mm
- Capacity
- Configuration and currency dependent
- Protocols
- SSP / ccTalk
Supported denominations, coin capacity and payout performance depend on the selected module and currency configuration.

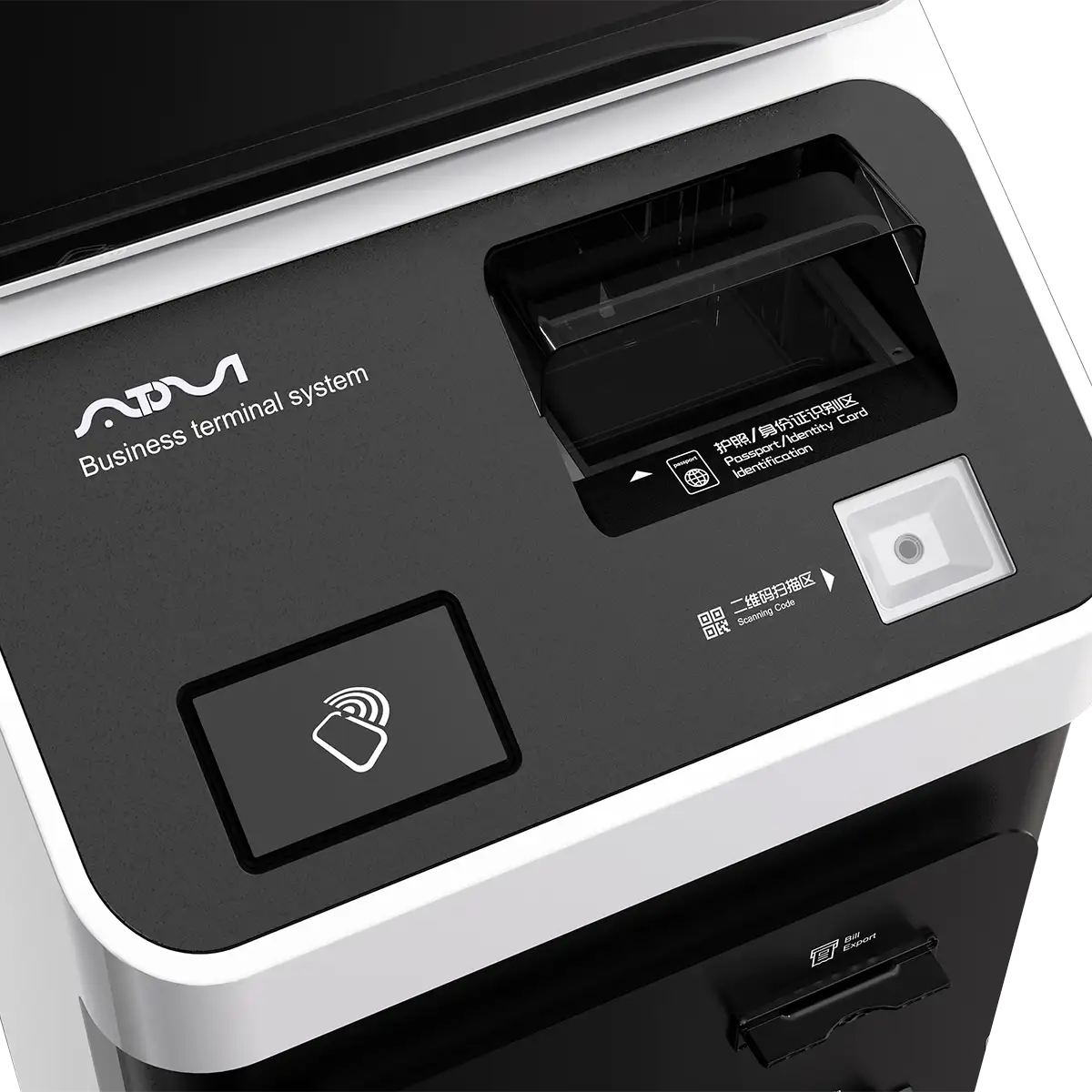

Passport & Document Reading
Passport, ID-document, OCR, barcode and electronic-document reading options can be integrated according to the identity-verification workflow.
View Typical SpecificationsHide Typical Specifications
Passport & Document Reading
Passport, ID-document, OCR, barcode and electronic-document reading options can be integrated according to the identity-verification workflow.
View Typical SpecificationsHide Typical SpecificationsTypical Configuration Example
Example specifications are provided for reference and are not fixed platform limitations.
- Document Recognition
- OCR for text, numbers, symbols and document data
- Electronic Documents
- RFID ePassport and eID reading
- Image Capture
- Visible / Infrared / Ultraviolet
- Image Resolution
- Up to 400 dpi
- Barcode Reading
- 1D / QR / PDF417 / Data Matrix
- Document Detection
- Automatic detection, triggering and recognition
- Interface
- USB 2.0
Supported passports, identity documents, RFID standards and recognition software depend on the selected document reader and regional requirements.
QR & Barcode Scanning
Embedded scanning modules can read printed and on-screen QR codes and one-dimensional barcodes, with configurable communication interfaces and installation formats.
View Typical SpecificationsHide Typical Specifications
QR & Barcode Scanning
Embedded scanning modules can read printed and on-screen QR codes and one-dimensional barcodes, with configurable communication interfaces and installation formats.
View Typical SpecificationsHide Typical SpecificationsTypical Configuration Example
Example specifications are provided for reference and are not fixed platform limitations.
- Image Sensor
- 640 × 480 CMOS
- 2D Codes
- QR Code / Micro QR
- 1D Codes
- Code 128 / EAN / UPC / Code 39 / Code 93 / ITF and other common formats
- Screen Barcode Reading
- Supported
- Typical QR Reading Depth
- 20–75 mm for 15 mil QR Code
- Interfaces
- USB / TTL-232 / RS-232 option
- Field of View
- 64° horizontal / 49.8° vertical
- Operating Temperature
- -20°C to 60°C
Supported symbologies, reading distance, interface and installation dimensions vary by the selected scanning module.
Camera & Image Capture
High-resolution USB camera modules can support facial image capture, remote video assistance and workflow-specific imaging. Recognition and liveness algorithms can be integrated separately when required.
View Typical SpecificationsHide Typical Specifications
Camera & Image Capture
High-resolution USB camera modules can support facial image capture, remote video assistance and workflow-specific imaging. Recognition and liveness algorithms can be integrated separately when required.
View Typical SpecificationsHide Typical SpecificationsTypical Configuration Example
Example specifications are provided for reference and are not fixed platform limitations.
- Active Array
- 3840 × 2160
- Interface
- USB 2.0
- Power
- 5 V USB bus power
- Module Size
- 38 × 38 × 20 mm
- Focus Distance
- 60 cm
- Operating Systems
- Windows / Android
- Operating Temperature
- -20°C to 70°C
Camera resolution, lens, viewing angle, image-processing SDK and recognition capability depend on the selected module and software integration.
Card Issuing & Encoding
Card dispensing, reclaiming and encoding modules can be configured for RFID, contact IC or magnetic-stripe cards according to project requirements.
View Typical SpecificationsHide Typical Specifications
Card Issuing & Encoding
Card dispensing, reclaiming and encoding modules can be configured for RFID, contact IC or magnetic-stripe cards according to project requirements.
View Typical SpecificationsHide Typical SpecificationsTypical Configuration Example
Example specifications are provided for reference and are not fixed platform limitations.
- Functions
- Card issuing / Reading / Writing / Reclaiming
- Typical Card Standards
- Mifare 1 / ISO 15693 / ISO 14443A
- Double-Card Prevention
- Mechanical anti-double-dispensing design
- Card Stacker Capacity
- Up to 200 cards at 0.76 mm thickness
- Card Reclaim Capacity
- Up to 18 cards at 0.76 mm thickness
- Card Detection
- Card-empty and pre-empty detection
- Communication
- RS232
- Multi-Device Control
- Up to 16 devices on a typical RS232 control chain
This example represents a contactless-card configuration. Alternative modules can support contact IC, magnetic-stripe or other card technologies.
Typical Applications
Typical Applications
Hotel Check-in
Guest registration, key dispensing, and payment workflows in hotel lobbies and reception areas.
Explore Application →Retail Self-Service
In-store ordering, information, and transaction terminals for retail and service environments.
Identity & Document Services
Passport reading, document capture, and verification workflows for workforce and service centers.
Product Inquiry
Interested in the A Series?
Share your deployment environment and peripheral requirements — we will recommend an A Series configuration.
