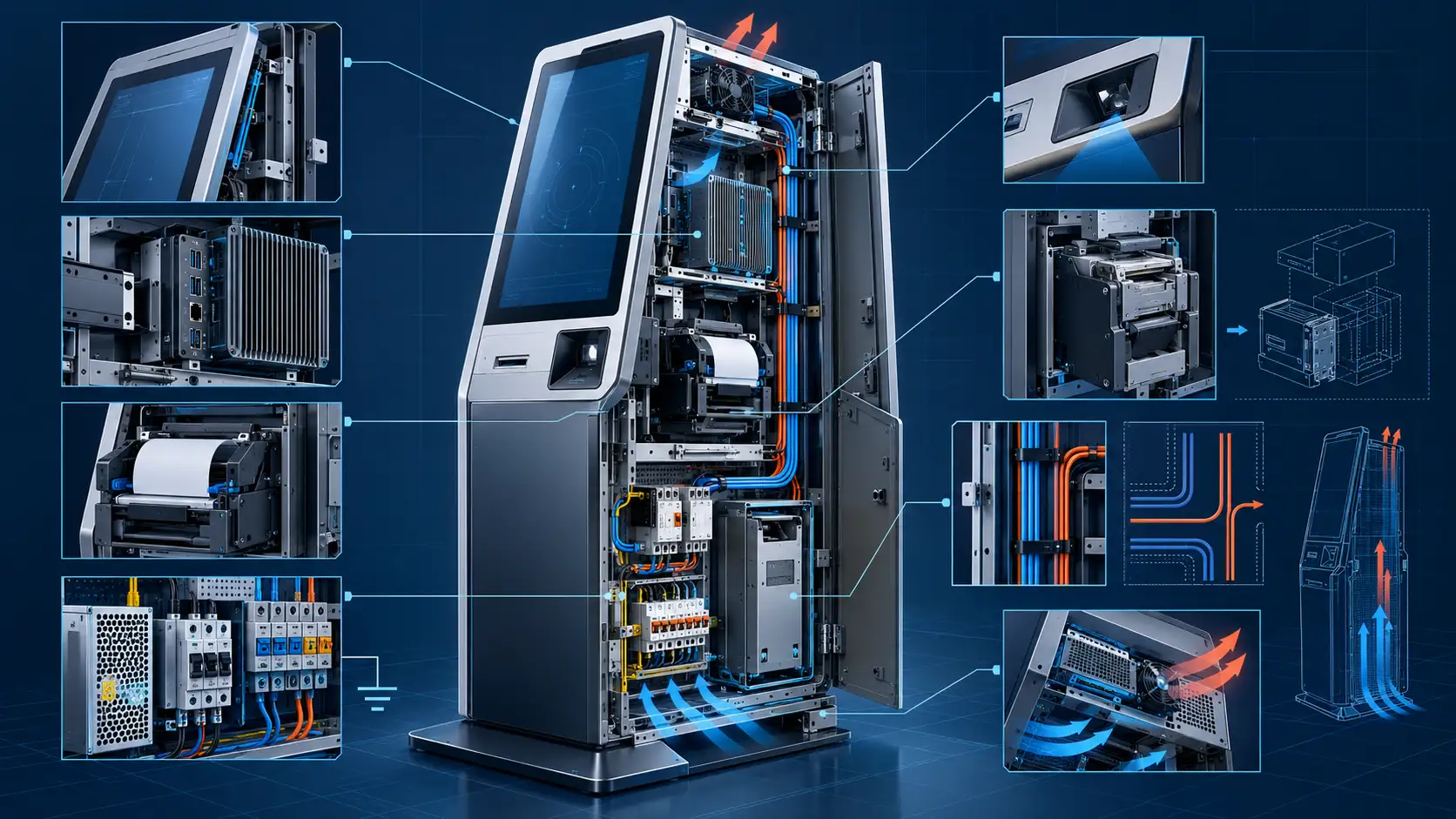

Industrial Kiosk Hardware Architecture for 24/7 Public Operations

A practical guide to industrial kiosk hardware architecture, covering internal zoning, power distribution, cable routing, modular peripherals and serviceability for 24/7 self-service operations.

18 min read
  • Hardware
  • Architecture
  • Serviceability

A kiosk designed for 24/7 public operation is not defined by the industrial PC alone.

Long-term serviceability depends on how the enclosure is divided internally, how power is distributed, how peripherals are mounted, how cables are routed and how quickly service technicians can replace high-wear modules.

In an industrial self-service kiosk, the enclosure should therefore be treated as an organized hardware platform rather than an empty cabinet filled with components.

CRTLY designs kiosk interiors around functional zones, service access and the specific peripheral configuration required by each project.

As a custom kiosk manufacturer, CRTLY builds configurable self-service kiosk hardware around these internal layout principles for OEM / ODM and project-specific deployments.

What “24/7 Kiosk Hardware Architecture” Really Means

Continuous operation requires more than selecting industrial-grade components.

In CRTLY’s kiosk engineering practice, a practical hardware architecture should consider several factors together:

  • Internal components must be positioned so that modules, brackets, doors and service paths do not interfere with one another.
  • The power system should be sized according to the combined peak load of the installed components, with additional reserve capacity. For many projects, CRTLY targets approximately 20% power headroom where appropriate.
  • Frequently serviced components should remain easy to access, remove and replace.
  • Power and signal wiring should follow clearly separated routes where practical, with particular attention to audio and speaker lines, device identification and electromagnetic-interference control.
  • The metal enclosure should be properly grounded as part of the electrical design.
  • Heat-generating components should be positioned around a clear internal heat-dissipation path with sufficient ventilation clearance.

The objective is not simply to fit every component inside the cabinet. The objective is to create an internal architecture that remains safe, serviceable and predictable during long-term operation.

Divide the Kiosk Cabinet into Functional Zones

A well-organized kiosk interior is easier to assemble, test and maintain.

Depending on the project, CRTLY typically considers several functional zones inside the cabinet.

User Interaction Zone

Typical components may include:

  • touchscreen
  • barcode / QR scanner
  • POS terminal
  • card reader
  • receipt output
  • camera
  • passport / ID reader

These components should be positioned around user ergonomics while still allowing rear or front service access.

Payment-facing devices in this zone should also follow the integration practices covered in Kiosk Payment Module Integration: NFC, QR and Card Terminals.

Processing and Control Zone

Typical components:

  • industrial PC
  • controller board
  • I/O modules
  • network equipment
  • communication interfaces where required

The processing zone should remain accessible without requiring unrelated payment or printing modules to be removed first.

Power Distribution Zone

Typical components:

  • AC input
  • main power switch
  • circuit protection
  • AC/DC power supplies
  • surge protection
  • terminal blocks
  • optional UPS

The purpose of this zone is electrical organization, safe access and maintainability.

Cash and High-Security Zone

Where cash handling is required, the enclosure may include:

  • banknote acceptor
  • banknote recycler
  • coin module
  • cashbox
  • cash-capacity planning based on transaction volume and replenishment frequency
  • an independent internal cash safe where the project requires higher physical security

These modules should be separated from normal user access and positioned for secure service access.

Cash-handling design should consider not only the type of acceptor or recycler, but also the required storage capacity, expected transaction volume and how often the operator plans to empty or replenish the machine.

For projects with larger cash volumes or higher security requirements, CRTLY can design a separate internal cash safe using approximately 4–6 mm steel plate, depending on the cabinet structure and project requirement.

The cash safe can be mechanically separated from the normal electronics and service area, with independent access control where required.

Service and Consumables Zone

Typical service items:

  • receipt printer
  • paper roll
  • card dispenser
  • cash cassette
  • replaceable peripheral modules

Consumables and frequently serviced parts should not require technicians to dismantle unrelated assemblies.

Peripheral Layout Determines Serviceability

In many kiosk projects, printers, payment devices and dispensing modules require more frequent service than the main control computer.

For this reason, peripheral layout should be planned around practical maintenance paths rather than assembly convenience alone.

Design for Direct Module Access

A service technician should ideally be able to reach a failed or consumable-dependent module without first removing several unrelated components.

Practical maintenance paths should include printer paper replacement, printer jam access, bill acceptor / recycler cleaning, cashbox removal, POS replacement, industrial PC replacement, power supply replacement and card dispenser loading.

Depending on the project, CRTLY may support these tasks with slide-out printer trays, accessible banknote recycler brackets, removable coin hoppers, card dispenser loading access, replaceable POS mounting brackets and accessible scanner connections.

Prevent Mechanical Interference Inside the Cabinet

A component can fit inside a CAD model and still create problems during assembly or maintenance.

Mechanical design should check not only the installed position of each module, but also the space required to remove it.

Typical interference problems include:

  • a printer tray colliding with the cabinet door
  • a cash module blocking access to the industrial PC
  • a cable bundle passing through a module-removal path
  • a card dispenser that cannot be opened fully for reloading
  • insufficient space to remove a power supply or POS bracket

For this reason, CRTLY reviews both the installed envelope and the service-removal envelope of major peripherals during cabinet design.

Power Distribution Inside an Industrial Kiosk

Kiosk power architecture should be organized so that service technicians can identify, isolate and replace electrical modules safely.

Typical design considerations include:

  • AC input routing
  • main breaker or protection
  • surge protection
  • AC/DC power supplies
  • independent power branches where required
  • terminal blocks
  • labeled wiring
  • optional UPS for project-specific requirements

Size the Power System for Peak Load

The power supply should not be selected only from the nominal operating consumption of each device.

Some peripherals can draw significantly more current during startup, printing, motor operation, note transport or dispensing.

CRTLY therefore starts by estimating the combined peak demand of the installed hardware — including the display, industrial PC, printer, POS terminal, cash modules, scanner, audio system and network devices — and then selects the power architecture around that total.

As a practical design margin, approximately 20% additional power capacity is normally reserved where appropriate for the project.

This headroom helps avoid operating the power supply continuously near its maximum rated load and can provide limited reserve for configuration changes.

Typical loads to consider may include:

  • display
  • industrial PC
  • receipt printer
  • POS terminal
  • bill acceptor or recycler
  • coin module
  • card dispenser
  • scanner
  • amplifier / speakers
  • network equipment

Once the power architecture is sized for peak load and reserve capacity, the industrial PC can be selected according to the customer’s application performance and interface requirements rather than as an unrelated catalog choice.

Separate High-Load Devices Where Appropriate

Printers, cash recyclers, large displays and other modules can have different power characteristics.

Where required, higher-load peripherals can be placed on appropriately sized power branches instead of routing all loads through one shared connection.

Design Power Components for Replacement

Power supplies, terminal blocks and protection devices should remain accessible from the service side of the kiosk.

Replacing a power supply should not require removing the display or unrelated customer-facing hardware.

Cable Routing and Signal Separation

Cable routing is a small design detail that can have a large effect on reliability and field maintenance.

A kiosk may contain AC power, DC power, USB, RS232 / RS485, Ethernet, payment-terminal cables, scanner cables, printer cables, sensor wiring and audio / speaker wiring.

Power and signal wiring should be routed separately where practical.

Power cables may also require ferrite cores as part of the project’s electromagnetic-interference control, depending on the power supply, cable length, peripheral configuration and electrical environment.

Audio and speaker wiring requires particular attention to shielding and interference control because these lines can be more sensitive to electrical noise from power supplies, motors and cash-handling devices.

All interface cables should be clearly labeled with the connected device name for easier installation, troubleshooting and field maintenance.

When power and signal cables must cross, short perpendicular crossings are generally preferable to long parallel routing.

Industrial PC Selection and Interface Planning

The industrial PC is one of the most important components in the overall kiosk hardware architecture.

After the power system has been sized for the combined peripheral load, PC selection should be based on the real performance requirements of the customer’s application rather than simply choosing the highest available specification.

An over-specified PC can increase project cost without providing meaningful operational benefit, while an under-specified PC can lead to slow response, unstable application performance or limited expansion capability.

The objective is to select a configuration that can run the customer’s application smoothly and reliably while maintaining a reasonable balance between performance and cost.

Important selection factors include:

  • processor and memory requirements based on the application workload
  • storage capacity and storage type
  • number and type of communication ports
  • available USB interfaces
  • native RS232 ports
  • RS485 where required
  • RJ45 Ethernet
  • HDMI or other display outputs
  • 4G / cellular communication where required

Where possible, CRTLY prefers to select an industrial PC with the required interfaces built in rather than relying heavily on external conversion cables or adapters.

For example, if a project requires multiple serial devices, native RS232 or RS485 interfaces are generally preferable to adding several USB-to-serial converters.

This can simplify internal wiring, reduce the number of intermediate connection points and make troubleshooting easier.

Modular Mounting for Replaceable Peripherals

A custom kiosk may need to support different peripheral models over the life of the project.

For this reason, CRTLY can use modular mounting methods such as removable trays, adjustable brackets, slide rails, replaceable mounting plates, reserved installation space and project-specific hole patterns.

If the cabinet was designed with modular brackets and sufficient service space, some component changes can be handled without redesigning the entire enclosure, depending on dimensions and interface requirements.

Service Doors and Maintenance Access

Service architecture should be planned at the same time as the internal component layout.

Depending on the kiosk installation, maintenance access may be front service, rear service, side service or a combination of access points.

Door opening angle, lock position, technician working clearance, module removal direction and cable movement when the door opens should all be checked before the enclosure is finalized.

Grounding Is Part of the Cabinet Architecture

A metal kiosk enclosure should be properly grounded.

Grounding should not be treated as a final wiring step after the cabinet has already been assembled.

The enclosure, electrical mounting structure and relevant power components should have a defined grounding path.

Grounding points should be clearly defined during cabinet design, especially where paint, powder coating or other surface finishes may interrupt direct metal-to-metal electrical contact.

Proper grounding supports electrical safety and can also reduce the risk of unwanted electrical noise affecting sensitive electronics.

Maintain a Clear Internal Heat-Dissipation Path

Every kiosk contains heat-generating components, even in indoor deployments.

The industrial PC, display, power supplies, printers, payment devices and cash-handling modules can all contribute to the internal heat load.

Internal layout should therefore preserve a clear heat-dissipation path around the main electronic components.

Practical considerations include:

  • keeping ventilation space around the industrial PC and power supplies
  • avoiding cable bundles that block airflow
  • avoiding placing high-heat devices directly against heat-sensitive modules
  • maintaining clearance around fans and ventilation openings
  • positioning components so that warm air is not trapped inside closed internal compartments

The purpose here is internal component organization around the industrial PC, power supplies, display, printer, POS and cash modules.

Hardware-Level Status and Monitoring Interfaces

Modern kiosk peripherals can expose operating status through hardware or software interfaces.

Depending on the project, useful signals may include door sensor status, printer paper status, printer error, cash-device status, payment-device status, power status, fan status, temperature sensor input and device heartbeat.

CRTLY can support the hardware-side integration of these signals where the selected peripheral provides the required interface.

Those hardware status interfaces can then feed higher-level systems described in CRTLY’s Self-service Kiosk Remote Management Guide.

Indoor and Outdoor Hardware Require Different Engineering Priorities

The internal architecture principles in this guide apply to both indoor and outdoor kiosks, but outdoor deployments introduce additional requirements for weather protection, corrosion resistance, climate control, drainage and sunlight-readable displays.

Those topics are covered separately in CRTLY’s outdoor payment kiosk weatherproof design guide.

Design for Replacement, Not Just Assembly

A kiosk that is easy to assemble at the factory is not automatically easy to maintain in the field.

Before finalizing an internal layout, the design should answer practical service questions:

  • Can printer paper be replaced and printer jams cleared without dismantling unrelated modules?
  • Can the bill acceptor or recycler be cleaned and the cashbox or cash safe accessed directly?
  • Can the POS terminal, industrial PC and power supply each be replaced from the service side?
  • Can the card dispenser be loaded without first removing nearby hardware?
  • Are device cables clearly labeled at the connection points?

The goal is to reduce unnecessary disassembly and make field service more predictable.

For long-term kiosk operation, maintainability should be treated as part of the hardware architecture from the beginning of the project.

Technical Highlights

Knowledge Summary

Key Takeaways

  • Prevent mechanical interference by checking both installed positions and service-removal paths.
  • Size the power system around combined peak load and reserve approximately 20% headroom where appropriate.
  • Select the industrial PC according to application performance and native interface requirements rather than maximum specification alone.
  • Separate power and signal wiring where practical, clearly label all device cables and apply EMI-control measures where required.
  • Proper grounding, cash-security planning and a clear internal heat-dissipation path should be considered during cabinet design.

Industry Tips

  • Use native PC interfaces where practical instead of relying on multiple conversion adapters.
  • Label every device cable clearly at the connection point.
  • Plan cash capacity and safe structure according to transaction volume and service frequency.

Integration Notes

  • PC interface planning should consider RS232, RS485, USB, RJ45, HDMI and cellular requirements before hardware selection.
  • Power cables may use ferrite cores where required for EMI control.
  • Audio and speaker lines require particular attention to shielding and routing.

Deployment Considerations

  • Confirm maintenance access before freezing the cabinet.
  • Confirm cashbox / safe access and required cash capacity.
  • Confirm power reserve, grounding points and heat-dissipation clearance during the engineering stage.

Frequently Asked Questions

What hardware should be considered in a 24/7 self-service kiosk?+

A 24/7 kiosk should be designed as a complete hardware system including the industrial PC, power distribution, display, payment devices, printers, scanners, communication hardware and service access. The final configuration depends on the application.

Should a 24/7 kiosk use an industrial PC?+

An industrial PC is commonly selected for continuous-operation kiosk projects, but the configuration should match the application’s performance needs and required interfaces such as USB, RS232, RS485, RJ45, HDMI and cellular where needed. Power distribution, peripheral layout and service access also need to be engineered correctly.

How should kiosk peripherals be arranged for maintenance?+

Frequently serviced modules such as printers, payment devices, cash modules and card dispensers should be positioned so technicians can complete paper replacement, jam clearance, cashbox removal, POS replacement and related tasks without removing unrelated components.

How much power reserve should a kiosk power system have?+

CRTLY sizes the power architecture around the combined peak demand of the installed components. For many projects, approximately 20% additional power headroom is used as a practical design margin, depending on the hardware configuration and project requirements.

Why should power and signal cables be separated inside a kiosk?+

Separating power and sensitive signal wiring where practical can reduce electromagnetic interference and simplify service work. Power cables may require ferrite cores depending on the project, and audio, speaker and communication wiring may need additional shielding or routing control. All interface cables should also be labeled with the connected device name.

Why is modular mounting useful in kiosk design?+

Removable trays, brackets and mounting plates can make it easier to replace or upgrade peripherals when dimensions and interface requirements allow, reducing the need to redesign the entire cabinet.

Can kiosk hardware provide status information for remote monitoring?+

Yes, where supported by the selected peripherals. Printers, payment devices, cash modules, sensors and controllers may expose status or fault signals that can be integrated into the customer’s monitoring or management system.

Related Articles

Continue Reading

Project Inquiry

Need help with a similar project?

Tell us your project scenario and our team will recommend suitable kiosk architecture and integration solutions.

We usually respond within one business day.
