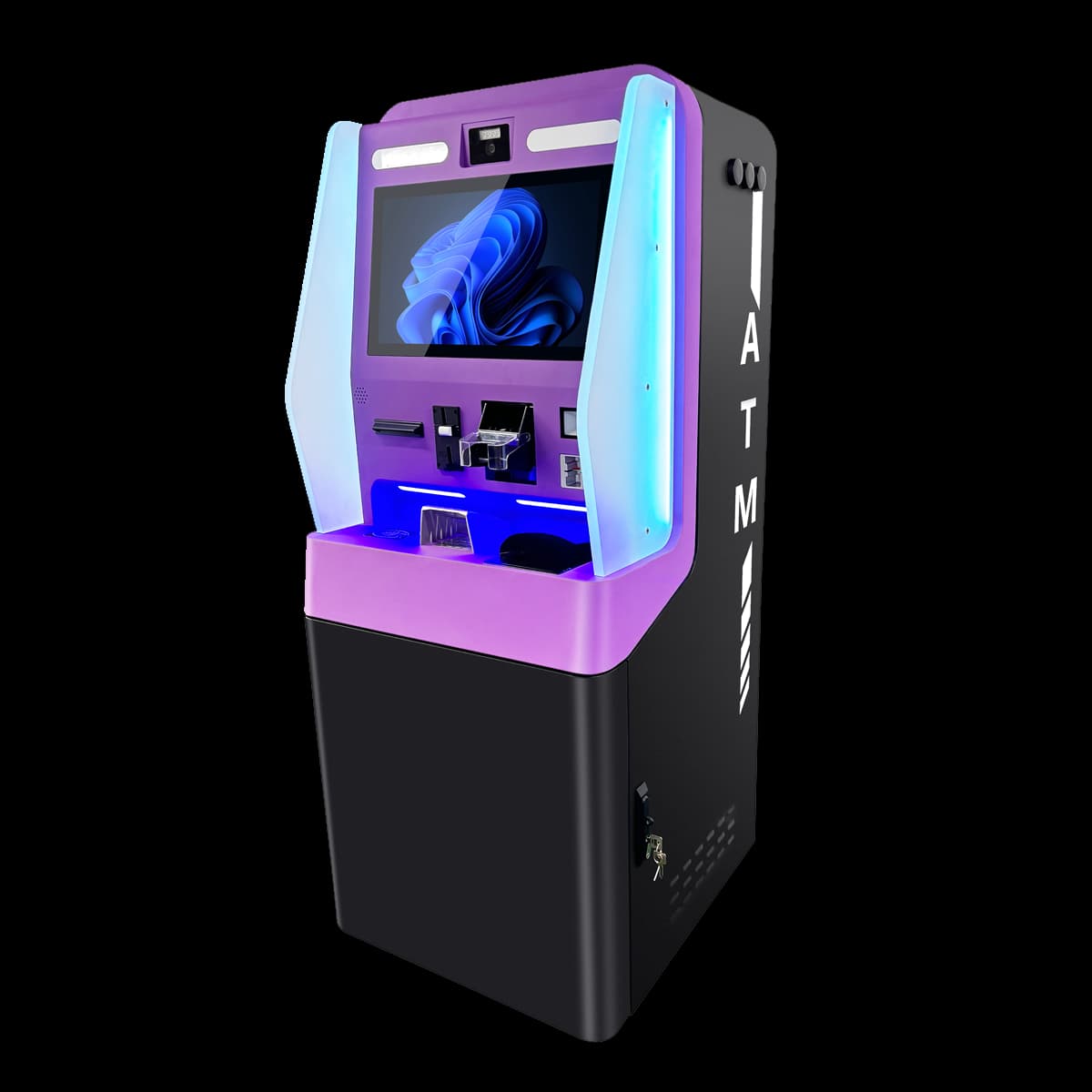

C Series Self-Service Kiosk

Typical Configuration Example

Example specifications are provided for reference and are not fixed platform limitations.

Print Technology

3-inch direct thermal printing

Print Speed

Up to 250 mm/s

Paper Roll Options

Up to Ø80 mm or Ø150 mm

Interfaces

USB / RS232; Ethernet on selected configurations

Cutting

Automatic cutter

Paper Handling Options

Receipt detection with LED / Anti-jam and anti-pull outlet / Receipt presentation and retraction

Available paper handling, interface and roll-capacity options depend on the selected printer configuration.

Confirmed Module Specifications

Example specifications are provided for reference and are not fixed platform limitations.

Model

AGF300

Capture Resolution

500 DPI optical capture

Capture Window

24 × 26 mm

Image Output

400 × 500 pixels

Matching Performance

1:1 matching typically <0.1 s; 1:N matching typically <1 s for up to 1,000 templates

Accuracy

FAR <0.0001%; FRR <0.5%

Anti-Spoofing

Residual fingerprint suppression / anti-fake fingerprint technology

Interface & SDK

USB + SDK

Operating Systems

Windows / Android

Matching performance and accuracy figures are based on the AGF300 module specification and may vary by enrollment quality, template set and host software.

Typical Configuration Example

Example specifications are provided for reference and are not fixed platform limitations.

Image Sensor

640 × 480 CMOS

2D Codes

QR Code / Micro QR

1D Codes

Code 128 / EAN / UPC / Code 39 / Code 93 / ITF and other common formats

Screen Barcode Reading

Supported

Typical QR Reading Depth

20–75 mm for 15 mil QR Code

Interfaces

USB / TTL-232 / RS-232 option

Field of View

64° horizontal / 49.8° vertical

Operating Temperature

-20°C to 60°C

Supported symbologies, reading distance, interface and installation dimensions vary by the selected scanning module.

Confirmed Module Specifications

Example specifications are provided for reference and are not fixed platform limitations.

Model

R122U

Operating Frequency

13.56 MHz

Supported Standards

ISO 14443 / ISO 18092 NFC / MIFARE

Data Rate

Up to 424 Kbps

Typical Read Distance

Up to approximately 50 mm

Interface

USB CCID

Host Protocols

PC/SC / CT-API

Indicators

LED + buzzer

Supported card types, read distance and host-driver behavior depend on the R122U configuration and application software.

Confirmed Module Specifications

Example specifications are provided for reference and are not fixed platform limitations.

Model

CRT-288 Series

Card Interface

Contact IC card reading and writing

Typical Use

Chip-based identity, banking and access-control workflows in self-service kiosks

Integration

Configurable according to project host software and card schemes

Exact electrical, protocol and card-scheme support depend on the selected CRT-288 Series configuration.

Typical Configuration Example

Example specifications are provided for reference and are not fixed platform limitations.

Active Array

3840 × 2160

Interface

USB 2.0

Power

5 V USB bus power

Module Size

38 × 38 × 20 mm

Focus Distance

60 cm

Operating Systems

Windows / Android

Operating Temperature

-20°C to 70°C

Camera resolution, lens, viewing angle, image-processing SDK and recognition capability depend on the selected module and software integration.

Typical Configuration Example

Example specifications are provided for reference and are not fixed platform limitations.

Document Recognition

OCR for text, numbers, symbols and document data

Electronic Documents

RFID ePassport and eID reading

Image Capture

Visible / Infrared / Ultraviolet

Image Resolution

Up to 400 dpi

Barcode Reading

1D / QR / PDF417 / Data Matrix

Document Detection

Automatic detection, triggering and recognition

Interface

USB 2.0

Supported passports, identity documents, RFID standards and recognition software depend on the selected document reader and regional requirements.

Typical Configuration Example

Example specifications are provided for reference and are not fixed platform limitations.

Functions

Card issuing / Reading / Writing / Reclaiming

Typical Card Standards

Mifare 1 / ISO 15693 / ISO 14443A

Double-Card Prevention

Mechanical anti-double-dispensing design

Card Stacker Capacity

Up to 200 cards at 0.76 mm thickness

Card Reclaim Capacity

Up to 18 cards at 0.76 mm thickness

Card Detection

Card-empty and pre-empty detection

Communication

RS232

Multi-Device Control

Up to 16 devices on a typical RS232 control chain

This example represents a contactless-card configuration. Alternative modules can support contact IC, magnetic-stripe or other card technologies.

Typical Configuration Example

Example specifications are provided for reference and are not fixed platform limitations.

Banknote Handling

Acceptance, validation and mixed-denomination recycling

Recycler Capacity

Up to 80 mixed-denomination notes

Cashbox Capacity

Up to 1,000 notes

Accepted Note Width

60–85 mm

Recycled Note Width

60–82 mm

Validation

Full-spectral imaging

Interfaces & Protocols

USB / RS232 / SSP / ccTalk options

Currency support, denomination handling, recycler capacity, cashbox size and interfaces vary by the selected banknote module.

Typical Configuration Example

Example specifications are provided for reference and are not fixed platform limitations.

Configuration

Selected according to project requirements

Interface

Depends on the selected component model

Capacity

Configurable by component model

Installation

Integrated according to the kiosk internal layout

Compatibility

Subject to project, regional and software requirements

Exact module specifications vary by the selected component and project requirements.

Typical Configuration Example

Example specifications are provided for reference and are not fixed platform limitations.

Configuration

Selected according to project requirements

Interface

Depends on the selected component model

Capacity

Configurable by component model

Installation

Integrated according to the kiosk internal layout

Compatibility

Subject to project, regional and software requirements

Exact module specifications vary by the selected component and project requirements.

Confirmed Module Specifications

Example specifications are provided for reference and are not fixed platform limitations.

Model

CDM6240N

Cassette Configuration

6-cassette configuration for C Series

Cassette Capacity

500 notes per cassette as standard

Dispensing Speed

Approximately 2 notes/second

Denominations

Supports up to 6 denominations

Note Detection

Detection for worn, double and folded notes

Cassette Security

RFID-enabled cassette status reporting / double-lock cassette security

Dispensing Modes

Single / semi-bunch / bundle dispensing

Maintenance Access

Front / rear maintenance access

Transport Unit

Dust-proof enclosed transport unit

Interface

RS-232

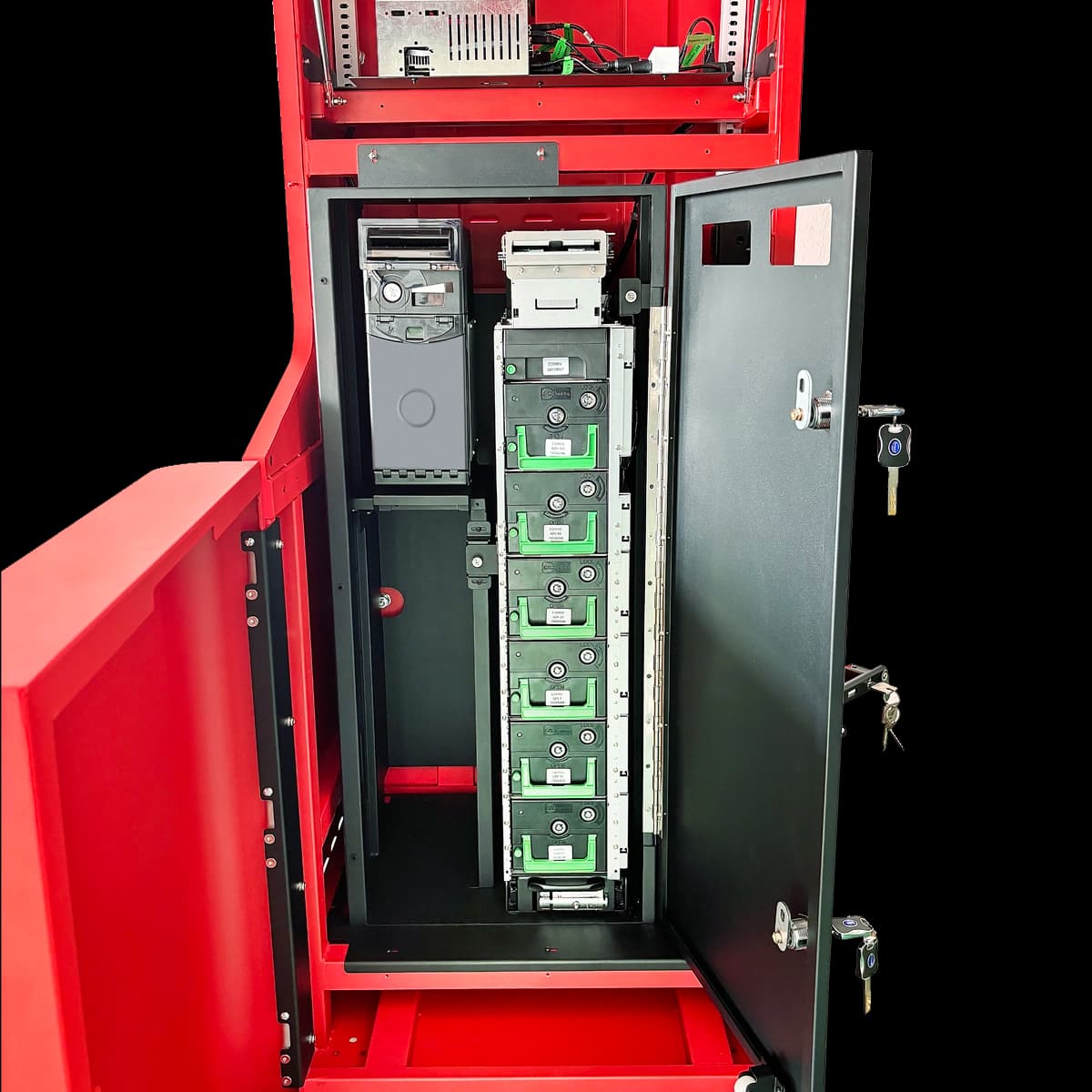

C Series uses the CDM6240N in a 6-cassette configuration. Cassette capacity, denomination mapping and dispensing mode depend on currency and project software.

Confirmed Module Specifications

Example specifications are provided for reference and are not fixed platform limitations.

Model

SE8098B

Security Certification

SE8098B is PCI V3.0 certified according to the module specification

Encryption

Supports DES, 3DES and RSA encryption up to 4096-bit

Tamper Protection

Tamper-resistant design with sensitive-data self-destruction protection

Panel & Keys

SUS304 stainless-steel panel and keys

Connectivity

RS232 and USB

Key Layout

10 numeric keys + 6 function keys

Key Lifetime

≥2,000,000 operations

Sensitive Data Retention

Sensitive data retention after power loss: >5 years

Operating Temperature

-25°C to +65°C

MTBF

>20,000 hours

Security Standards

ANSI X3.92 / ANSI X9.52 (DES / 3DES); ISO 9564 series (PIN processing); ANSI X9.9 / X9.19 (MAC); ANSI X9.24 (key management); ISO 13491 (security)

PCI V3.0 certification, encryption algorithms and tamper protections apply to the SE8098B module specification, not to the complete C Series kiosk platform.
