Laundry Application
Laundry Application
Self-Service Laundry Kiosk
CRTLY self-service laundry kiosks provide a centralized payment and machine-control point for laundromats, apartment laundry rooms, campus laundry areas and other shared laundry facilities. Projects can be configured for banknote acceptance, coin acceptance, coin change, optional POS/card payment and RS485 washer or dryer activation.
Target Environment
Self-service laundromats, apartment laundry rooms, campus laundry facilities, residential laundry rooms and other shared commercial laundry environments.
Business Context
Many laundry operators need one centralized payment point that can accept cash, manage machine selection and activate washers or dryers without requiring a staffed cashier.
- Banknote Payment
- Coin Payment
- Coin Change
- RS485 Machine Control
Laundry Project Requirements
Key Requirements for Centralized Laundry Payment Projects
A laundry payment kiosk has to coordinate payment, machine selection and washer or dryer activation while remaining simple for unattended daily operation.
Centralized Cash Collection
Accept banknotes and coins through one shared payment point instead of requiring payment hardware on every washer or dryer.
Flexible Payment Configuration
Configure banknote acceptance, coin acceptance, optional coin change and POS/card payment according to the site’s operating model.
Machine Selection & Activation
Let customers select a washer or dryer at the kiosk and send the activation command to the selected machine through the RS485 interface after payment is confirmed.
Unattended Daily Operation
Provide a clear self-service payment workflow that reduces the need for a permanently staffed payment counter.

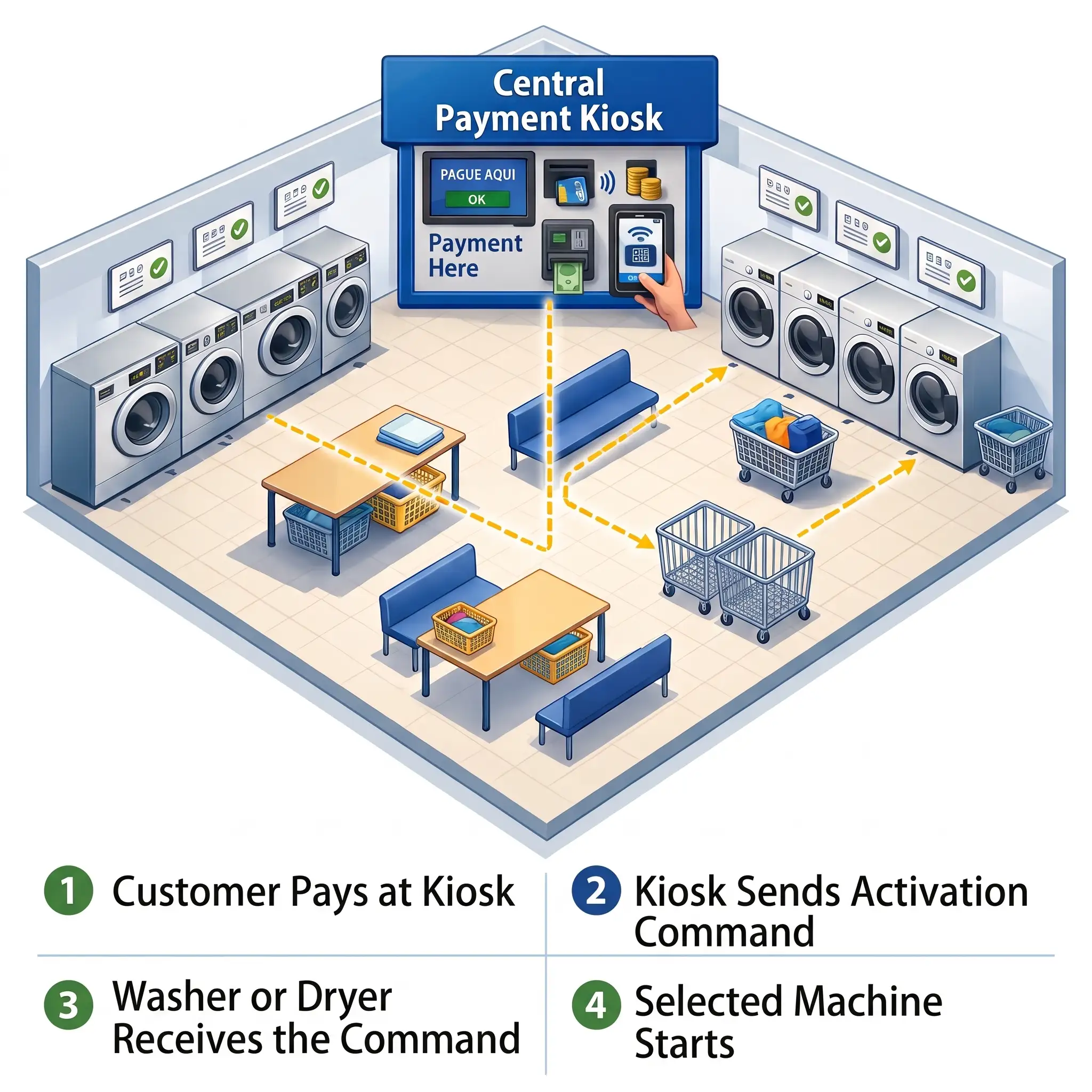

Typical Workflow
How a Centralized Laundry Payment Kiosk Works
A typical laundry payment project connects centralized payment, machine selection and washer or dryer activation into one self-service workflow.
- 01
Customer Selects a Washer or Dryer
The user selects the required washer, dryer or laundry service from the kiosk interface.
- 02
Customer Pays at the Kiosk
The kiosk accepts banknotes, coins, or optional POS/card payment according to the project configuration.
- 03
The Kiosk Sends an RS485 Activation Command
After payment is confirmed, the kiosk sends the activation command to the selected washer or dryer through the RS485 interface.
- 04
The Selected Machine Starts
The washer or dryer receives the command and begins the selected operation.
Typical Hardware
Typical Laundry Kiosk Hardware Configuration
A typical laundry payment kiosk is configured around cash handling, card payment, machine interface requirements and the installation environment.

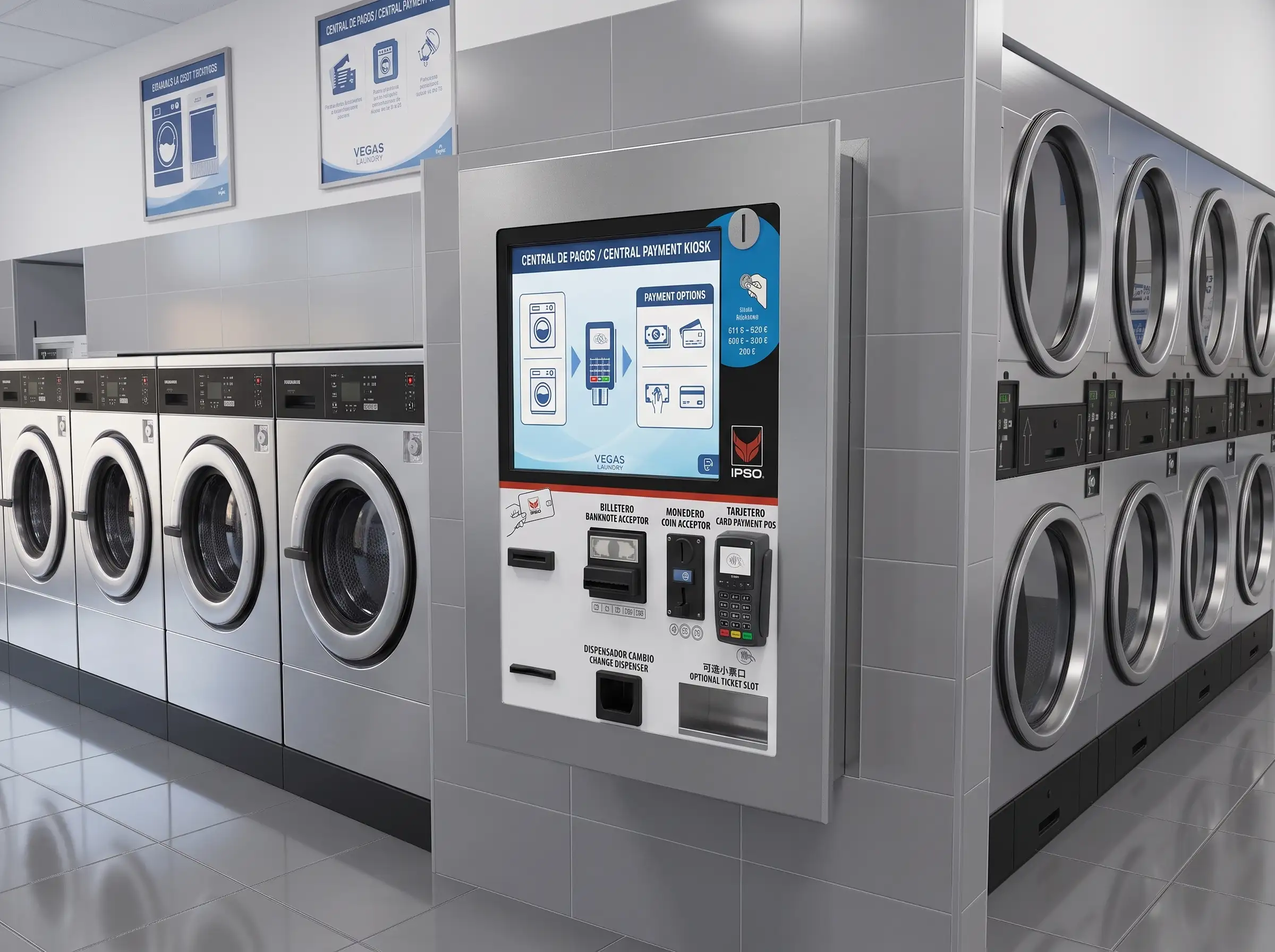

Wall-Mounted Laundry Payment Kiosk
The kiosk can be mounted directly to the wall to provide a centralized payment and machine-control point for the laundry facility. The enclosure, dimensions and installation structure can be customized according to the site environment and hardware configuration.
02
Control & Machine Integration
- Touchscreen
- Industrial PC / Controller
- RS485 Machine Interface
03
Enclosure & Installation
- Custom Enclosure Dimensions
- Site-Specific Installation Design
Project Customization
Configure the Laundry Kiosk Around Your Site
Laundry kiosk projects can be adapted around the installation environment, payment method, software workflow and washer or dryer communication requirements.
Enclosure & Installation
Customize enclosure dimensions, finish, branding and installation structure according to the site environment and project requirements.
Cash & Coin Modules
Configure banknote acceptors, coin acceptors and optional coin change dispensers based on the required currencies and operating workflow.
POS / Card Payment
Add a compatible POS or card reader when electronic payment is required.
Laundry App & User Interface
Customize machine selection, pricing display, language, payment flow, status prompts and other application functions around the operator’s workflow.
RS485 Machine Integration
Integrate the kiosk with washers or dryers through RS485 based on the machine protocol and interface documentation supplied for the project.
Peripheral Layout
Adjust the position and combination of the printer, POS terminal, cash modules and other required peripherals around the enclosure design.
Self-Service Laundry Kiosk Questions
Yes. The payment configuration can include a banknote acceptor, coin acceptor and optional coin change dispenser depending on the project requirements.
Project Inquiry
Planning a self-service laundry kiosk project?
Tell us about your laundry site, machine quantity and payment requirements. Our team will recommend a suitable kiosk configuration.
